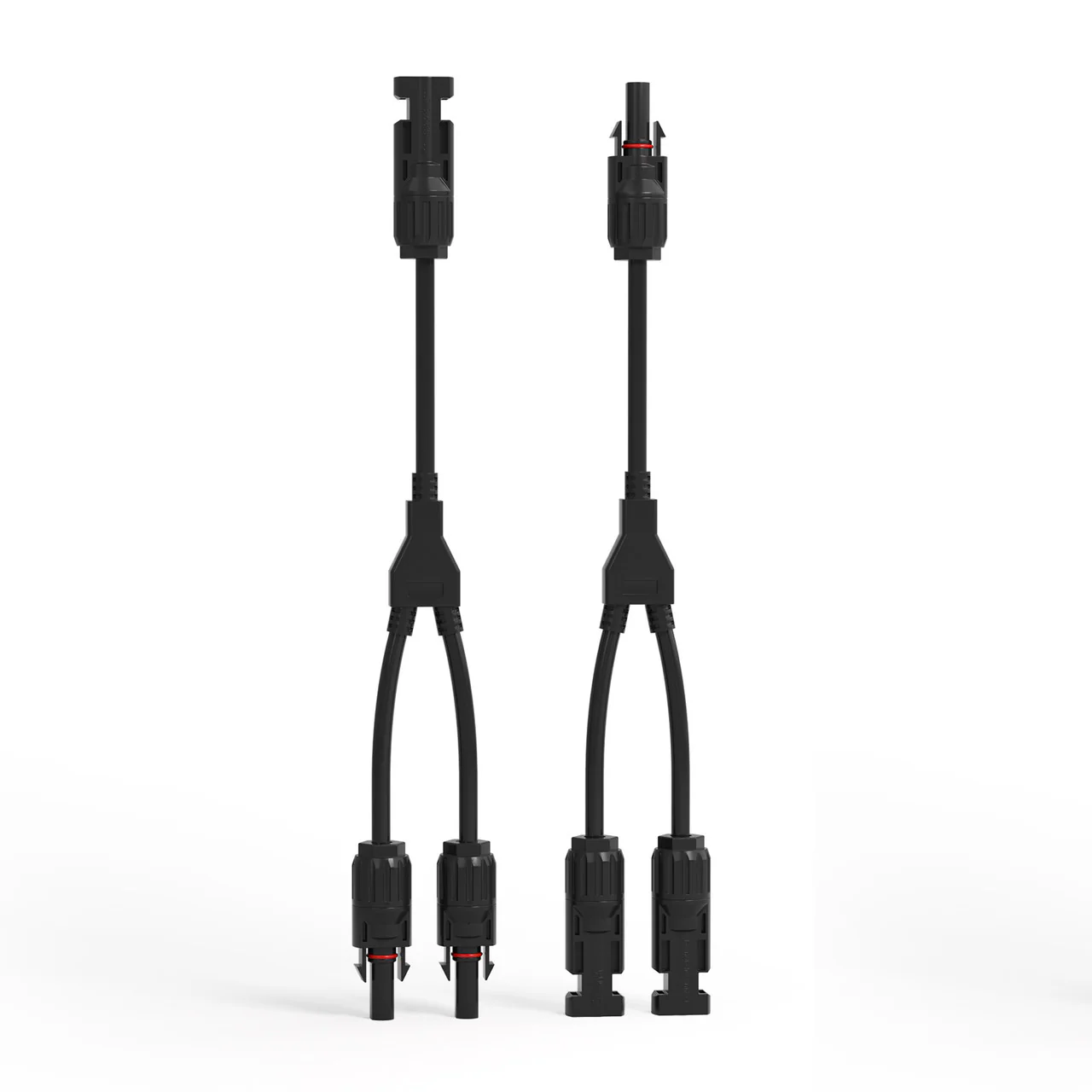

Solar Connectors Y Branch Parallel Adapter Cable MMF+FFM Pair

Learn more

NOTE:

If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!

Solar Connectors Y Branch Parallel Adapter Cable MMF+FFM Pair 1 x

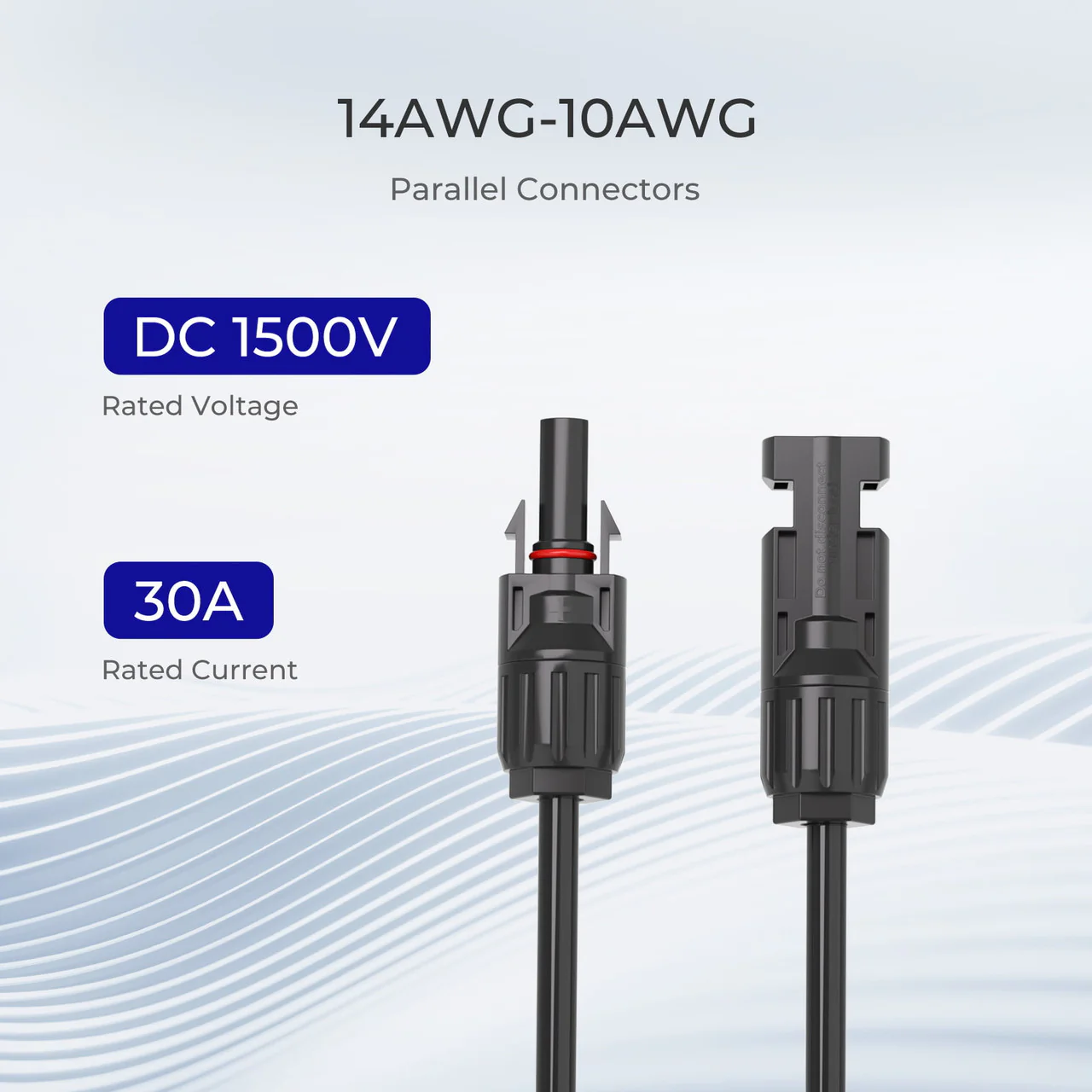

Solar Connectors Y Branch
Rated Voltage: 1500V DC(IEC)	Rated Current: 30A
Contact Resistance: 0.5mΩ	Insulation Material: PC
Contact Material: Copper,tin plated	Temperature: -40℃-90℃/-40°F-194°F
Protection Degree: IP67 mated/IP2X unmated	Safety Degree: Ⅱ
Flame Class: UL94-HB/UL94-V0	Suitable Single Core Cable Section: 2.5mm²,4mm²,6mm²
Warranty	1-year material and workmanship warranty

1. Is this what i would need to add a 5th 100 watt panel to my other 4 100 watt system?

Depending on the input capacity of your controller and the amperage capacity of the wire you use, this product might help.

2. For wire sizethe male/female connectors, what range of gauges of wire do these accept?

Normally for 14-10 awg solar wire.

4. Why these solar connectors are so tightly and can't remove from solar panels?

The tight design can prevent solar connectors from leaking by water. If you need to remove them from solar panels, you can use Renogy solar spanners.
