The perfect addition to any off-grid system, whether for a caravan or a cabin, the Renogy 3000W Pure Sine Wave Power Inverter acts as a DC to AC converter, allowing you to power your household appliances. Unlike modified sine wave inverters, this 3000W inverter is a pure sine wave, capable of producing cleaner, smoother, and more reliable electricity to operate tools, fans, lights, and other electronics without interference. Many off-grid systems require a 12V solar inverter to power everyday electronics, and this one includes multiple protections to help things run smoothly and safely. The AC priority function enables the inverter to automatically switch from the battery (DC) to the mains (AC) and vice versa whenever the utility company takes or loses power!

Find your energy freedom with Renogy 3000W 12V Pure Sine Wave Inverter

User-Friendly Remote

Effortless Installation

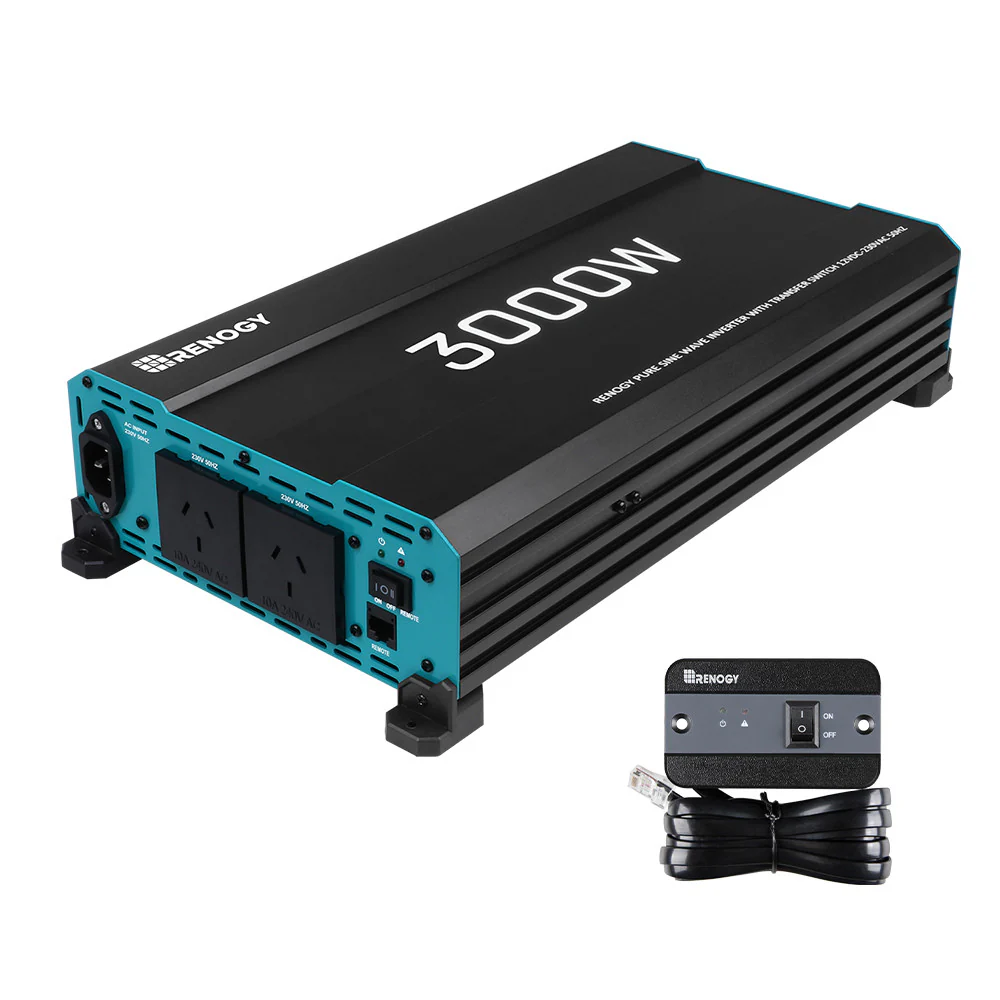

Easy-to-Use Remote Control

Includes a 3-meter cable, allowing you to control devices remotely even when installed in hard-to-reach locations.

Effortless Installation

Comes with all necessary accessories to simplify and streamline the installation process.

Installation Requirements – Australia

RCD (Residual Current Device) – Mandatory External Installation

⚠️ Important Compliance Notice for Australian Customers

This inverter does not include a built-in Residual Current Device (RCD / safety switch).

To comply with AS/NZS 3000 (Wiring Rules) and AS/NZS 3001.2 (Electrical Installations – Transportable Structures), an external RCD (rated ≤30mA) must be installed on the AC output and input side of this inverter.

Stable Output Voltage at Full Load

Protects connected devices, ensures the efficiency and accuracy of sensitive equipment, and enhances overall system performance.

Intelligent Heat Dissipation

Optimizes system performance to run smoothly and efficiently, even in extreme temperatures, ensuring consistent peak operation.

Durable and Reliable Aluminum Design

The durable aluminum casing features low radiation and anti-interference properties, ensuring reliable performance and a sleek design.

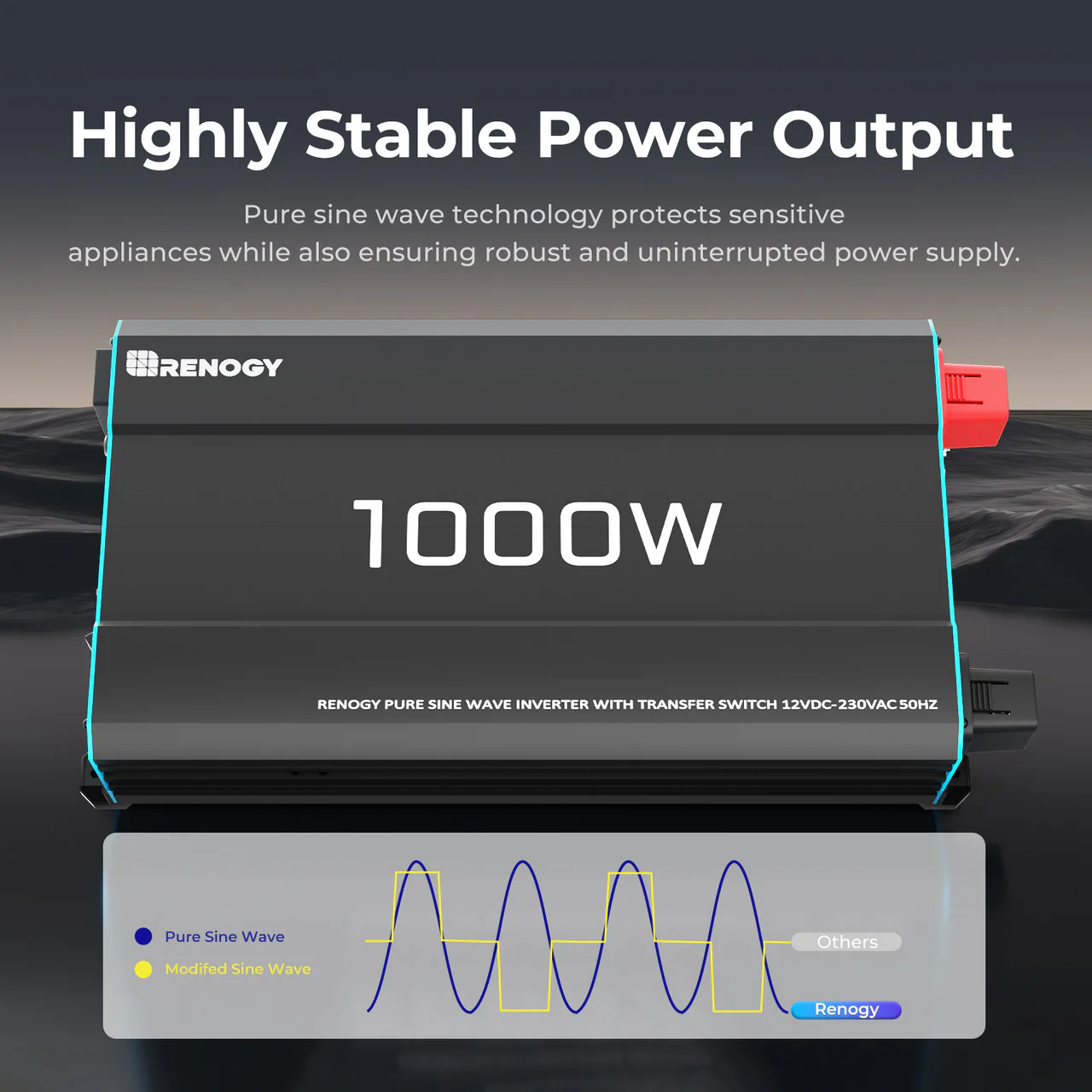

Versatile Pure Sine Wave Power

The pure sine wave output ensures a smooth and stable power supply that mimics utility grid power, making it highly versatile and compatible with a wide range of electrical appliances. Renogy inverters work seamlessly with sensitive devices, avoiding compatibility issues or disruptions, and prolonging their lifespan while ensuring reliable performance.

Wiring Diagram

Dimensional Reference Guide

One-Stop Off-Grid Energy Solution

Seamlessly integrates Renogy solar panels, charge controllers, and batteries with the versatile pure sine wave output of the inverter, providing a reliable, efficient, and ultimate solution for off-grid power needs.

Dimensional Reference Guide

Before installing the inverter, ensure there is at least 50mm of clearance above the unit, and a minimum of 101mm on the side with the busbars.

Connect with Renogy customers.

Go to Power Plus Community

Still have questions?

Ask our specialist

Renogy 3000W 12V Pure Sine Wave Inverter
ELECTRICAL SPECIFICATIONS
Rated Output Power: 3000W	Surge Power (Peak Power): 6000W
Input Voltage: 12V DC	Output Voltage: 220-240V AC
Input Voltage Range: 11-16VDC	Static Current: 1.5A
Output Frequency (Nominal): 50HZ	Output Wave Form: Pure Sine Wave
Low Voltage Shutdown: 10VDC	Low Voltage Protection: Recover from low voltage protection
High Voltage Shutdown: 16.3VDC	Battery Supply & AC Main Transfer Time: Within 50mS
Maximum Efficiency: 90%	Working Temperature: 0°C~40°C
Dimensions: 48222092 mm	Weight: 6.4Kg
Certifications: CE
Package includes：
3000W Inverter x1(Inverter Only)

Material and Workmanship Warranty

Warranty Period: 1-year

1. Is this inverter suitable for overnight caravan use??

Yes. The low-noise intelligent cooling system is designed for quieter overnight use in caravans, RVs and cabins, helping keep sleeping spaces more comfortable while running essentials like fridges, fans and CPAP devices.

2. Will it fit under my caravan seat or side cabinet?

Yes. With its slim 92mm profile and compact 482 × 220mm footprint, this inverter is ideal for under-seat storage, side lockers and tighter off-grid battery compartments.

3. Does UPS backup keep Wi-Fi and CPAP running?

1. The built-in UPS function switches from AC to battery within 50ms, helping keep Wi-Fi routers, CPAP machines, fridges and work laptops powered during outages.

4. Can I use this inverter with a 24V battery system?

No. This is a 12V pure sine wave inverter, so it must only be used with a 12V battery bank. For 24V systems, please choose a 24V-compatible inverter model.

5. Will this inverter work with lithium batteries?

Yes. It is compatible with 12V lithium batteries, including LiFePO4, as long as the battery system matches the inverter’s 12V DC input requirement.

Please note: DC cables aren't included. You'll need to supply your own.

6. Does this inverter include a built-in RCD?

No. This inverter does not include a built-in Residual Current Device (RCD / safety switch). For installations in Australia, an external RCD rated ≤30mA must be installed on both the AC input and AC output side by a licensed electrician to comply with: AS/NZS 3000 (Wiring Rules) AS/NZS 3001.2 (Electrical Installations – Transportable Structures) This is the standard installation method for Australian caravans, cabins and home backup systems, and is commonly used by licensed RV and residential electricians.

7. What size inverter should I buy?

Choose an inverter based on: 1) Appliance wattage Add the total wattage of all devices you plan to run at the same time. Example: Fridge: 500W Air conditioner: 800W Total: 1300W A 3000W inverter gives extra headroom for startup surges and future upgrades. 2) Battery voltage This model requires a 12V battery system. 3) Installation space Its slim 92mm thickness makes it easier to fit under caravan seats, in side lockers or compact battery bays.

8. What cable size should I use, and is it included?

For best performance, use the shortest and thickest DC cables possible to reduce voltage drop. Recommended: up to 3m: 25mm²–35mm² longer runs: 35mm²+ Please note: DC cables are not included and must be sourced separately.
